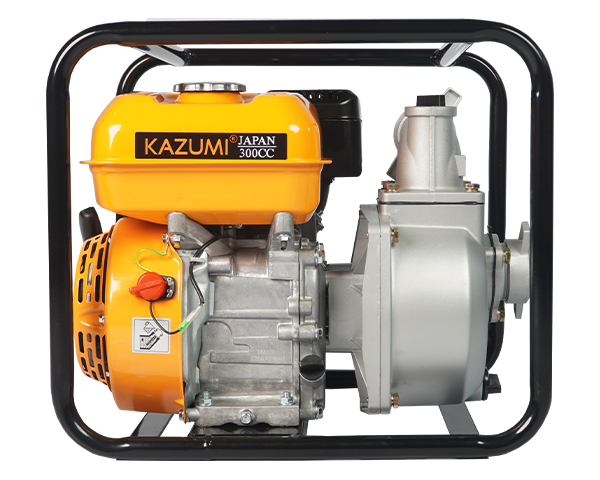

PETROL ENGINE WATER PUMP 2″- 8HP – KZP20

PETROL ENGINE WATER PUMP 2"- 8HP - KZP20

The self-priming pump consists of pump body, pump cover, flow guidance, impeller and seals, etc. Shaft sealing is machinery type sealing and the inlet of pump is higher than the inlet of impeller so that it can self prime and you only need fill water into the body of the pump.
  • Model : KZP20
  • Rated Displacement(M/H) : 22
  • Max Displacement(M/H) : 36
  • Max Head(M) : 26
  • Rated Head(M) : 15
  • Max. Suction Head(M) : 8
  • Displacement(L) : 0.163
  • Fuel Tank Capacity(L) : 3.6
  • Rated Power(KW/RPM) : 3600

Get a Quote

The coupling of suction pipe to the pump must be tight, reliable without any leakage.

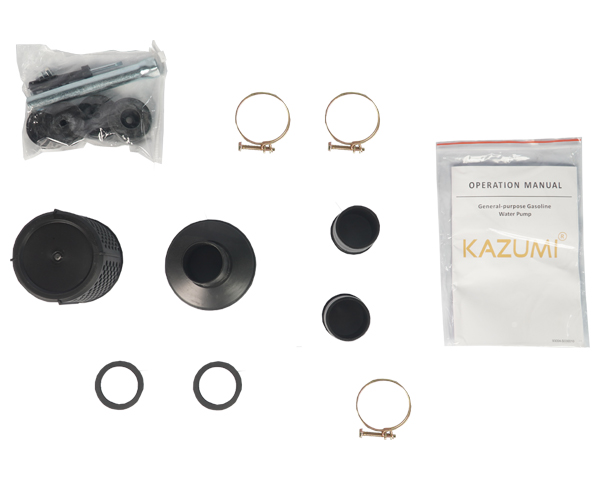

A filter net must be added into the inlet of suction pipe as a protection to avoid impurity be sucked into the pump and stick or damage the impeller.

Specification

Model

KZP20

Rated Displacement(M/H)

22

Max Displacement(M/H)

36

Max Head(M)

26

Rated Head(M)

15

Max. Suction Head(M)

8

Displacement(L)

0.163

Fuel Tank Capacity(L)

3.6

Rated Power(KW/RPM)

3600
